Multileader Styles - Annotation

Multileaders are used to point to objects with text or symbols
Multileader Style Manager enable you to create styles that control the multileader display





Home tab > Annotation panel > Multileader Style Manager





Annotate tab > Leader panel > Small Arrow - Multileader Style Manager







Scale can be specify or annotative



Leader Type can be Straight, Spline, None

External Reference - Xref

When you insert a drawing into another as a block, the graphics are merged and no link between 2 files

External References enable you to combine files and retain the link

Objects in the referenced drawing do not become part of the host drawing
Objects modified in the reference drawing will automatically updated in the host drawing

Reference files enable design team to share common source files and have the most current information

External Reference Palette - Xref

You can use External Reference palette to Attach, Unload, Reload, Detach reference files
View tab > Palettes panel > External References palette



When a drawing attached an external reference



A Manage Xrefs icon appear on the right-corner of the Status bar
Click the icon to open the External Reference palette

If an Xref file cannot be found



A warning box open to enable you to relocate the reference file

Use of External Reference

Change to Tree View to show the relationship between host and reference drawings

In the bottom pane, you can select the Detail view or Preview

Attach a Reference File - Xref

View tab > Palettes panel > External Reference Palette



Insert tab > Reference panel - Small Arrow - External References

 External Reference palette > Attach DWG

Navigate to the file location - Open

Set the options as need

Reference Type: Attachment or Overlay
You can set the Scale, Insert Point, Rotation
Path Type: Full path, Relative path, No path
Block Unit: The Insertion Scale units of the reference file can be control by Unit command

Other Xref Specific Attachment Options - Xref


If a raster image's name already exist (even the extension is different), a dialog box pop-up for the new name

DWF

If the Scale factor set to Specify on Screen



You have the option to select the unit in mm or meter

DGN

MicroStation DGN file units are set up in Master units and Sub units
If you attach a DGN file that is created with Master unit of mm, and Sub units of thousand of mm, you need to convert the Master units

PDF

If you are using multi-sheet PDF file, you can select any sheet to insert in the host drawing

Open Reference File - Xref

The best way to modify the reference file is open it
Select the reference file, then right-click > Open



A drawing reference will open in AutoCAD software
Image file will open according to the program in which file type of image associated
DWF underlay will open in Autodesk Design Review
DGN underlay cannot be open with AutoCAD software

Alternately, you can select the reference, right-click > Open Xref



When you close and save the open Xref

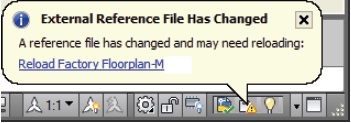

Alert balloon pop-up and prompt you to reload the reference file to show the changes

Remove Reference File - Xref

There are 2 ways to remove reference files from your drawing:

1. Unload
2. Detach

Unload

Temporary remove a reference file, you can Reload it anytime you need

Detach

Permanently remove a reference file from the drawing
You can attach the reference again

Clipping Reference - Xref

When you attach an Xref to the drawing, you may not need to display the whole reference



Select the Xref, External Reference tab > Clipping panel > Creating Clipping Boundary




Select Rectangular, then drawing a rectangle to retain the area of the reference



Clip Frame

You can toggle On & Off for the clip frame

Insert tab > Reference panel > Hide Frame





The clip frame been hide



Modify Reference - Xref

When select a reference file, a contextual tab displays according to the type of reference file selected:

Drawing

You can edit the reference drawing, clipping or open the External Reference Palette

DWF

You can adjust the contrast and fade, or change DWF to monochrome; clipping, enable snap, edit layers


You can adjust the brightness, contrast and fade, clipping; change the background transparency

Underlays and image references can only be selected when the frame of reference is on



Insert tab > Reference panel

Properties of Reference File - Xref

DWF, DGN & Image references have some properties can be modify:



Show underlay: Turn On & Off Xref
Show clipped: Turn On or Off the Clip

Adjust the Contrast, Fade, Background color of underlay, and can set the underlay to monochrome



Images have the additional Background Transparency option

DWF Specific Adjustments - Xref

DWF reference files have 2 additional options:

1. On & Off Layers
2. Snapping to objects in DWF underlay

Select DWF underlay, right-click > DWF Layer



Select DWF underlay, right-click > DWF Object Snap



Attachment vs Overlay - Xref

You can attach a drawing reference as Attachment or Overlay

Attachment

If you attach drawing A with an Xref to Host drawing by Attachment, the Xref and drawing A both displayed in Host drawing

Overlay

If you attach drawing A with an Xref to Host drawing by Overlay, the Xref with drawing A will not display in Host drawing, only drawing A will displayed

Xref Layers - Xref

When you attach or overlay a drawing reference, the drawing objects and named objects (layers, blocks) also go into the host drawing

A special prefix is added to any named objects from the reference drawing
A layer named Door in reference drawing Factory Floorplan would display as Factor Floorplan|Door
You cannot make an Xref layer current in the host drawing
The Xref layer can be Off, Frozen, Lock
If the properties of Xref layer are change, it will not affect the reference drawing, the changes only retained in the host drawing

An Xref filter is automatically created when the drawing reference is attached

Binding Drawing - Xref

Copies all data of the referenced drawing into the current drawing and detaches the reference
Merge the referenced drawing into current and become a single drawing

Bind

The referenced layers with a prefix of the referenced drawing name and $0$





Insert

The block and layer names are added to the current drawing without change

Binding File Component - Xref

Instead of binding a entire drawing reference, you can bind the components like blocks, layers, linetypes, text styles, dimension styles

Xbind command will open a dialog box for you to bind the named objects

Demand Loading - Xref

Controls how much of a drawing reference file is loaded
Only the visible parts of the drawing  reference file are loaded
(Off, Frozen or clipped are not show)
Options > Open and Save tab > External Reference (Xref)

Demand load Xrefs:
Enable: Other cannot edit
Enable with copy: Other can use and edit
